Single point load cell SY639

Quantity:
Product Description

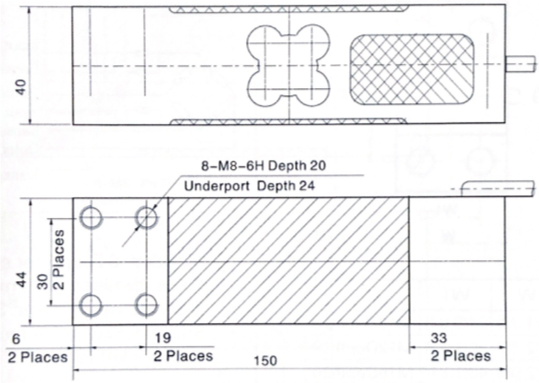

SY639 drawing

Specification
Load cell Rating 50/100/150/200/250/300/400/500kg
Accuracy C3
Sensitivity 2.0±0.2mv/v
Zero balance ±2% F. S
Input impedance (W) 406±6
Output impedance (W) 350±3
Insulation impedance (W) ≥5000M W (50VDC)
Temperature compensation range -10℃ ~ +40℃
Operating temperature range -35℃ ~ +65℃
Safe overload capacity 120% F. S
Ultimate overload capacity 150% F. S
Recommended excitation voltage 5 ~ 12V
Maximum excitation voltage 18V
Cable Φ5.6x2m
Cable connection Input: Red (+)   Black (-)
Output: Green (+)   White (-)
